Cook Screen Walkthrough



Home Screen (Double).png   broil boxed.png

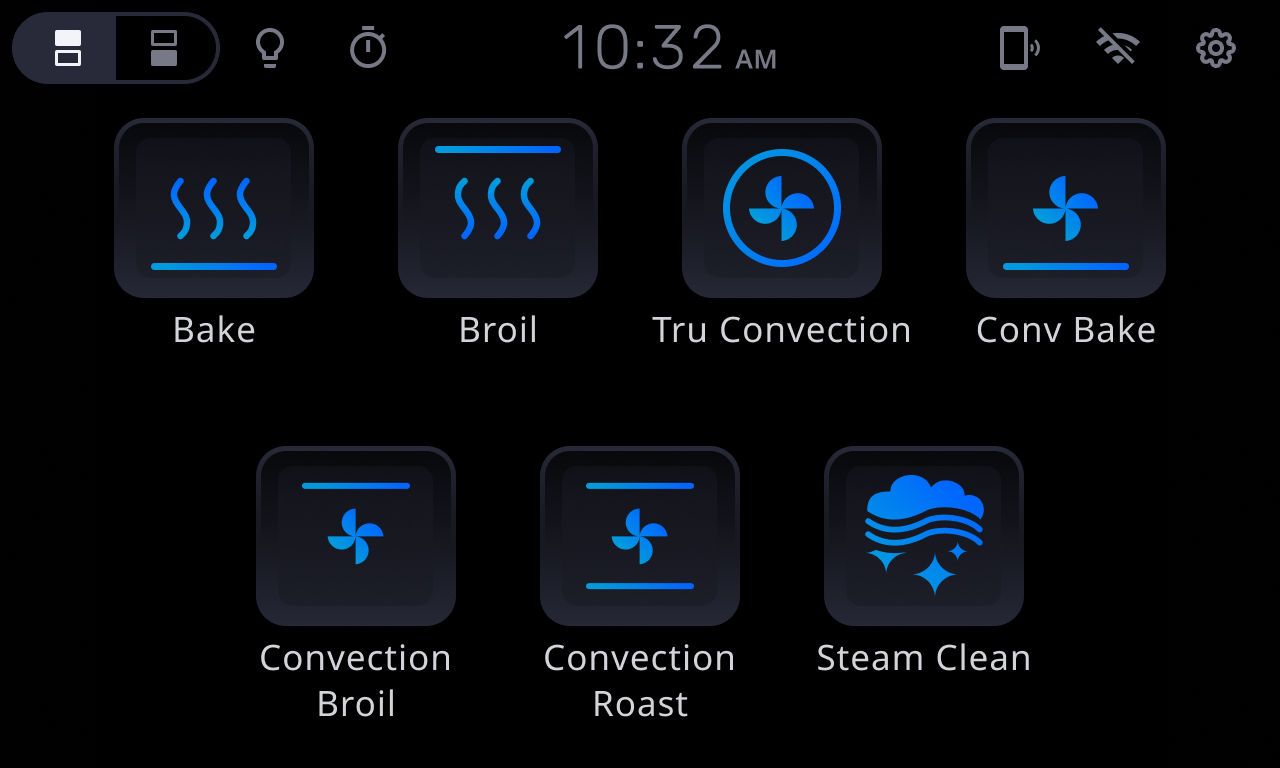

1. Selecting Bake, Tru Convection, Conv Bake, or Convection Roast function take you to the temperature selection screen below.

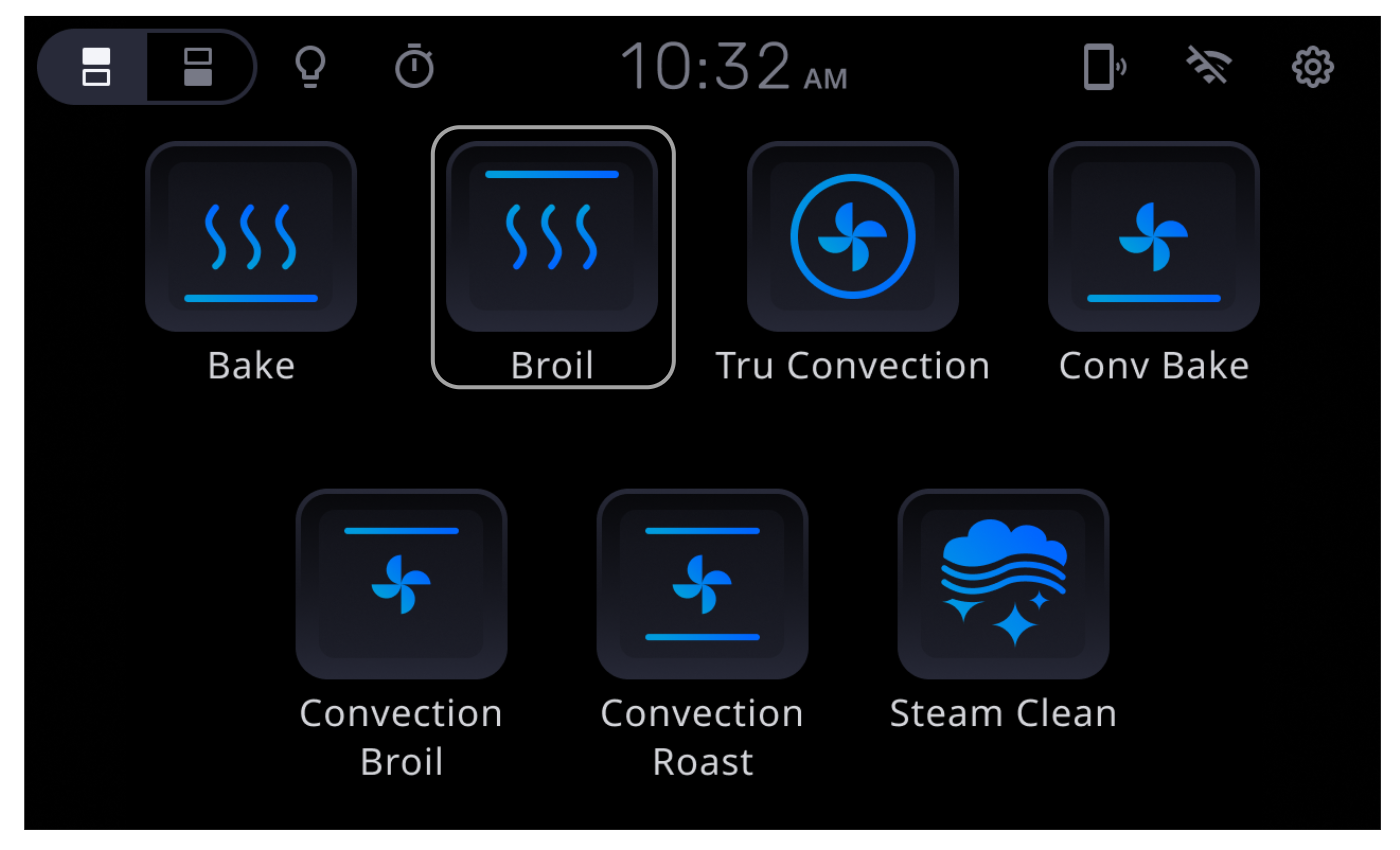

   1. Selecting the Broil cooking function will
be met with the temperature selection
screen below.
Parameter Selection (Double Oven, Fahrenheit 150 - 550).png   Parameter Selection Level High (Double Oven).png

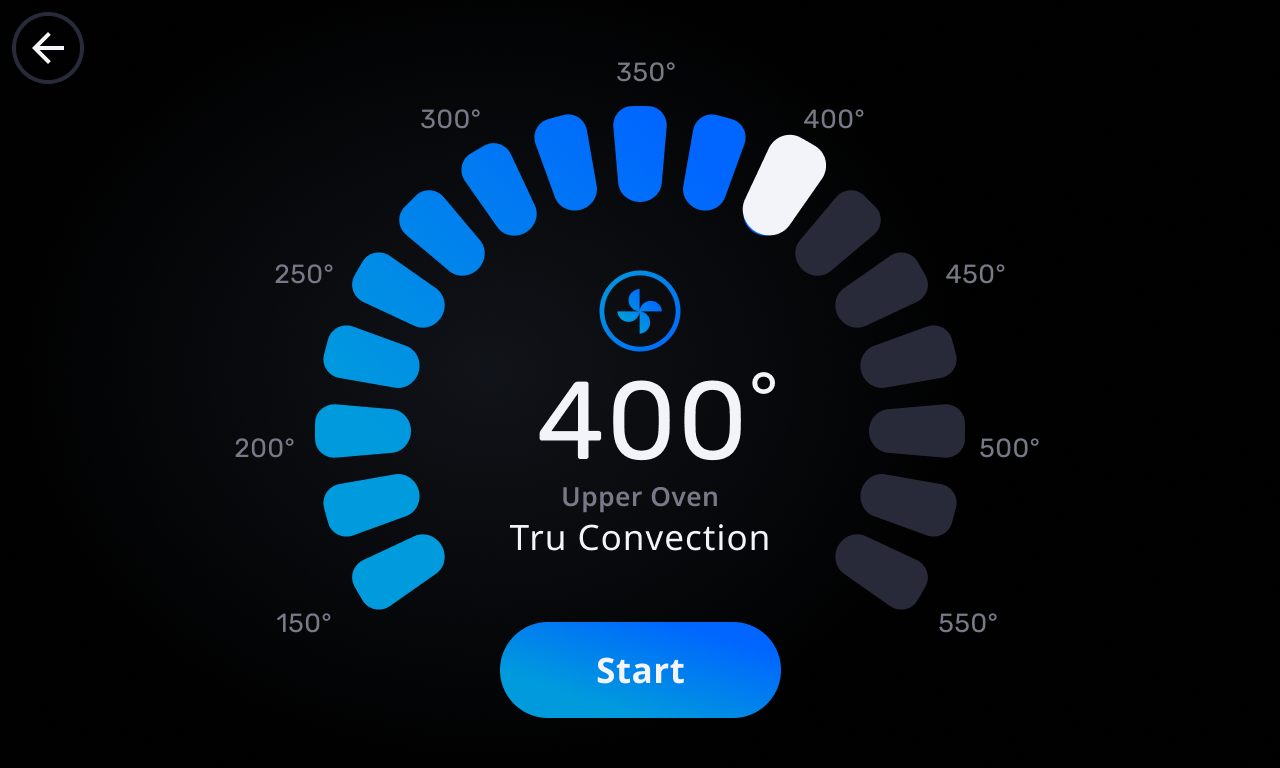

2. Tap or drag along the arc of pips to
set temperature. Press Start to begin
preheating the oven cavity.

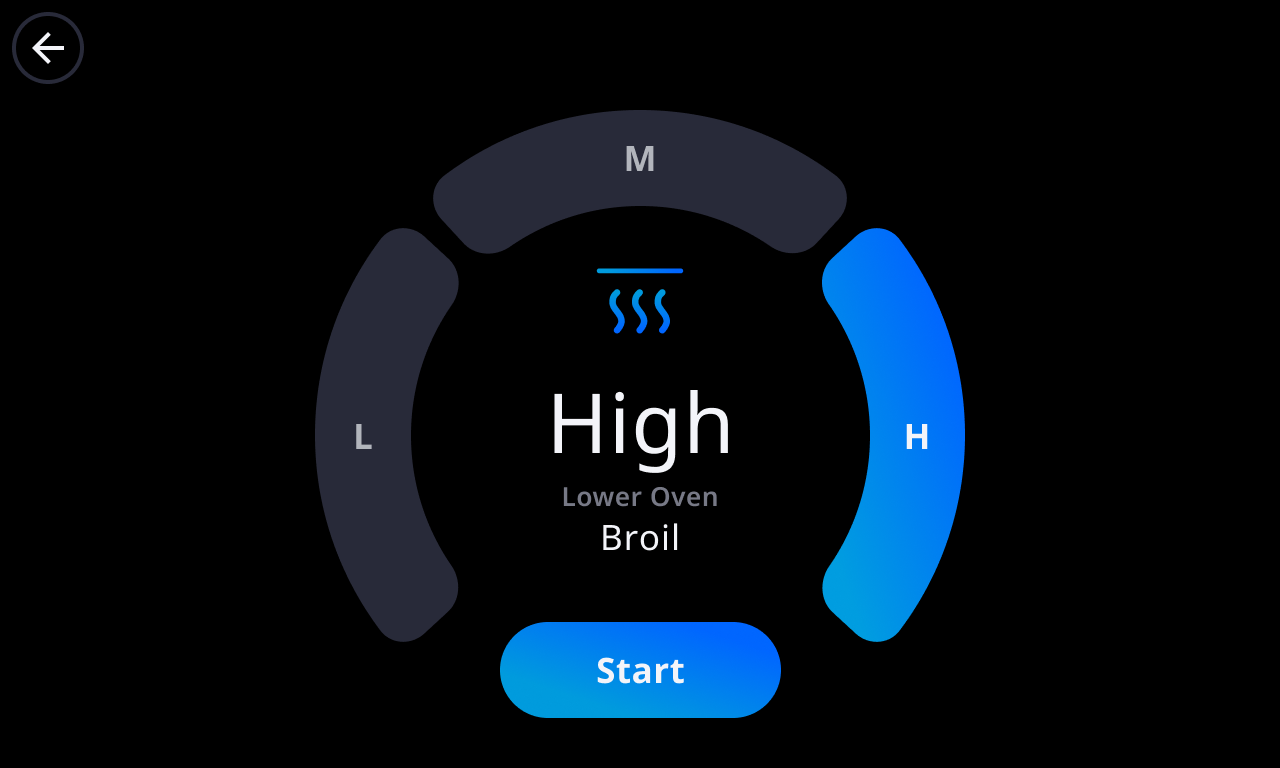

   2. Low, Med, High Selections are used only
for Broil cooking.
Preheating Pulse (Double Oven, Fahrenheit).png   image (5).png

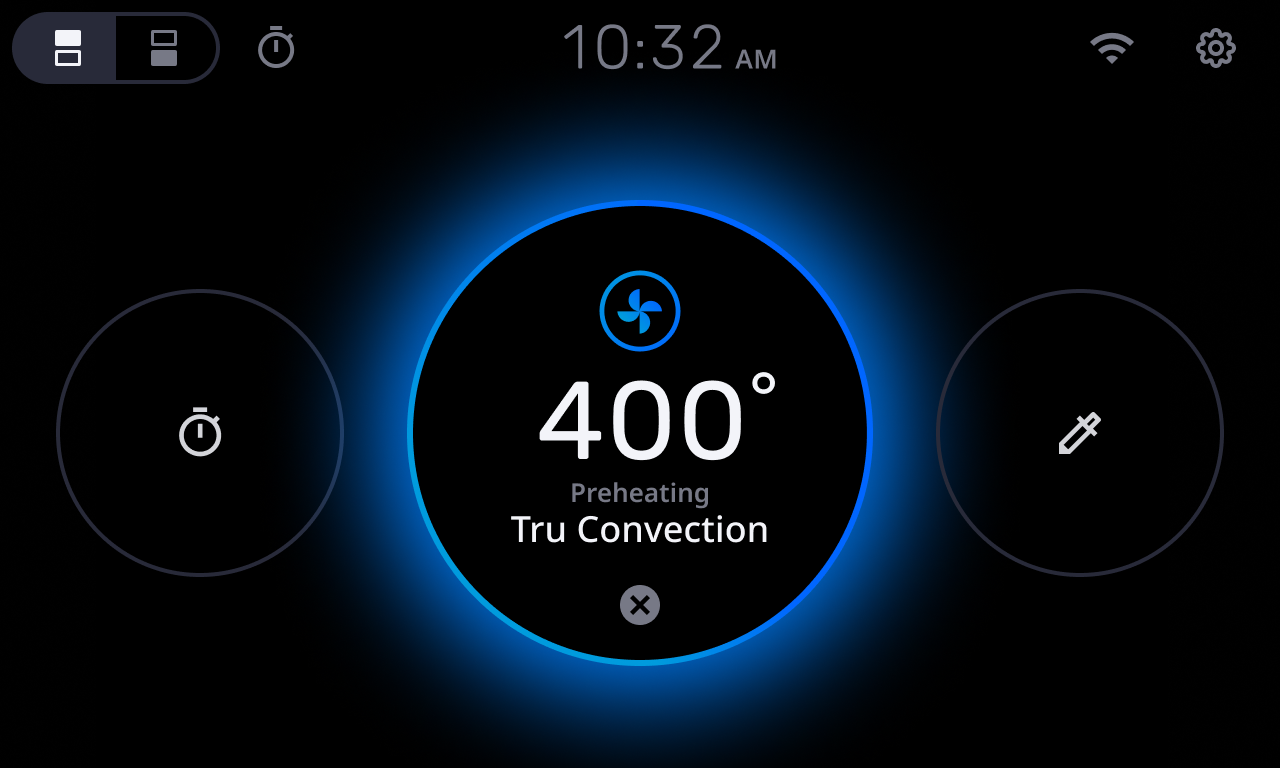

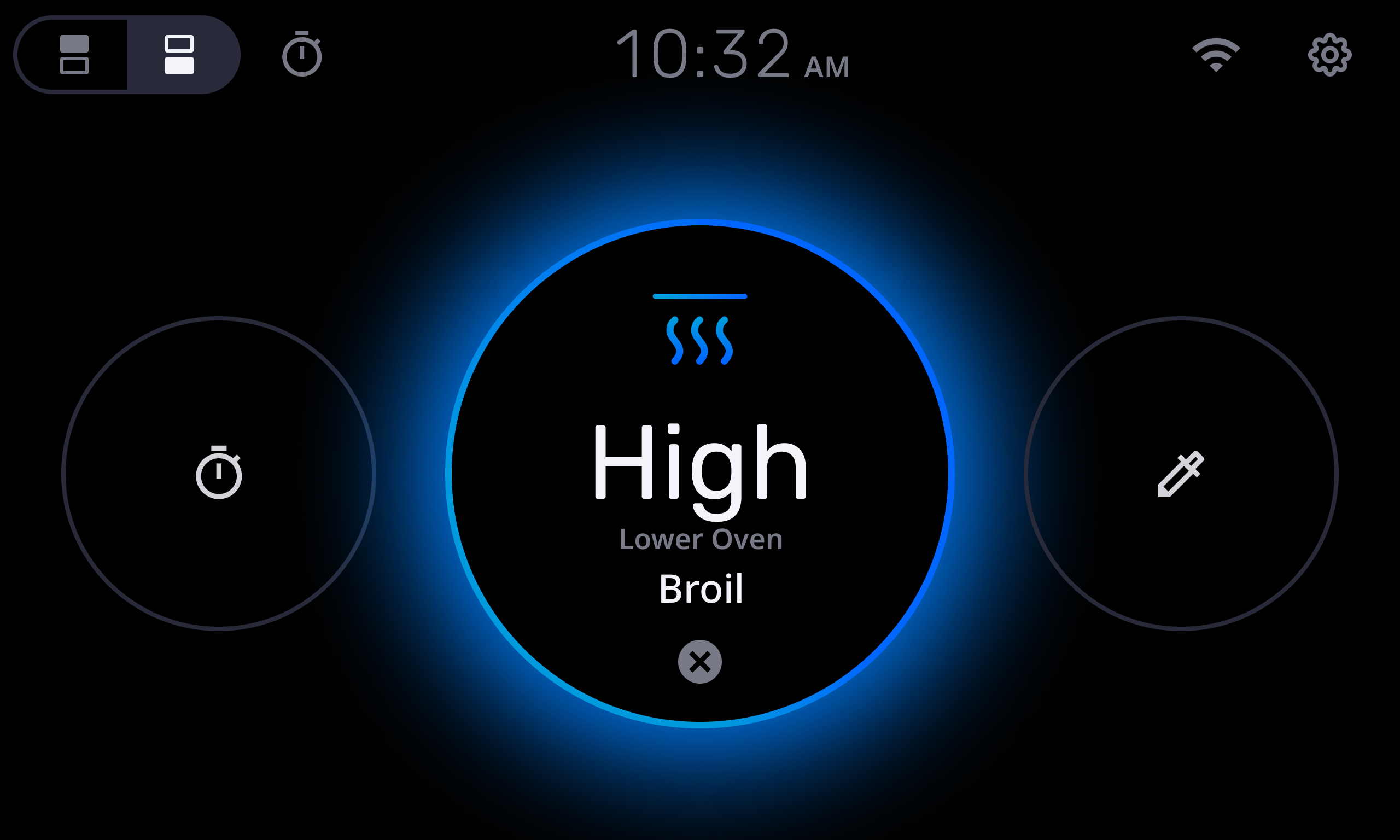

Preheating is denoted by the pulsing, glowing circle in the middle of the display. At this time, it is possible to set a Cooking Timer and/or a Meat Probe temperature.


Mode Active.png   Mode Active High Broil.png

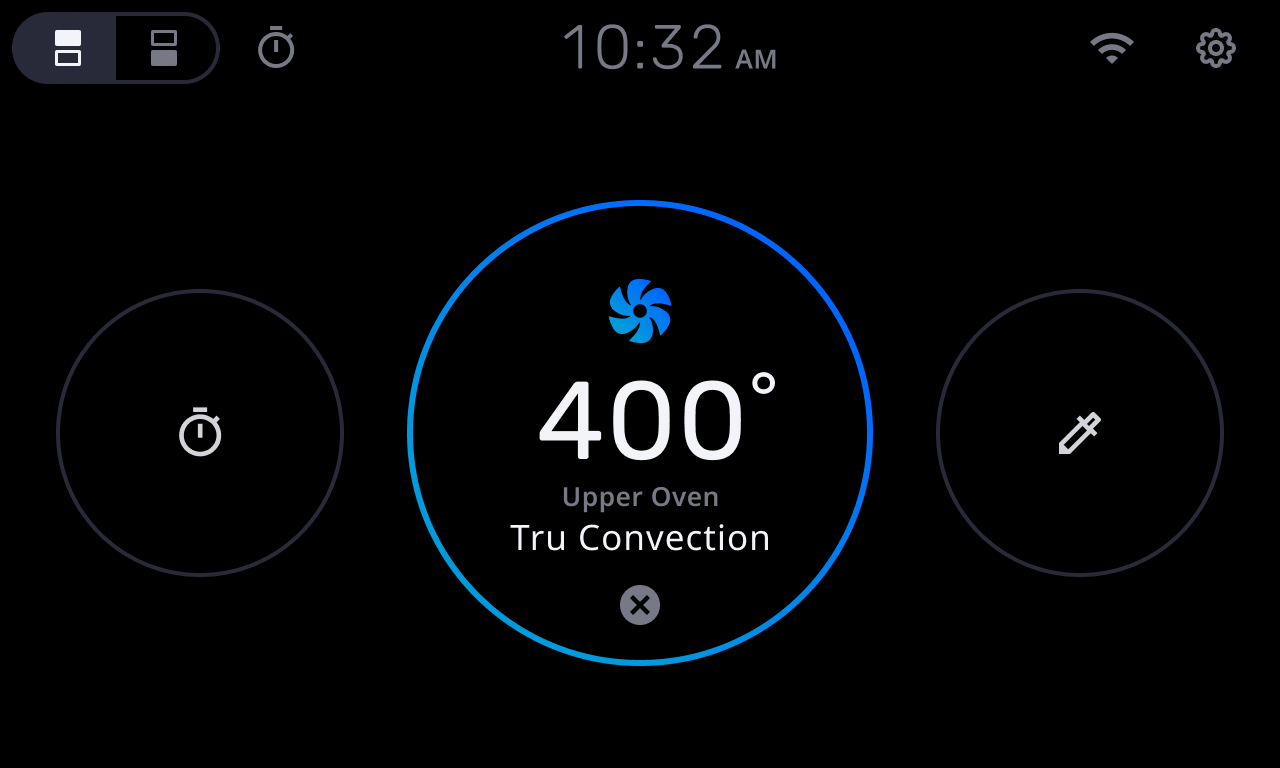

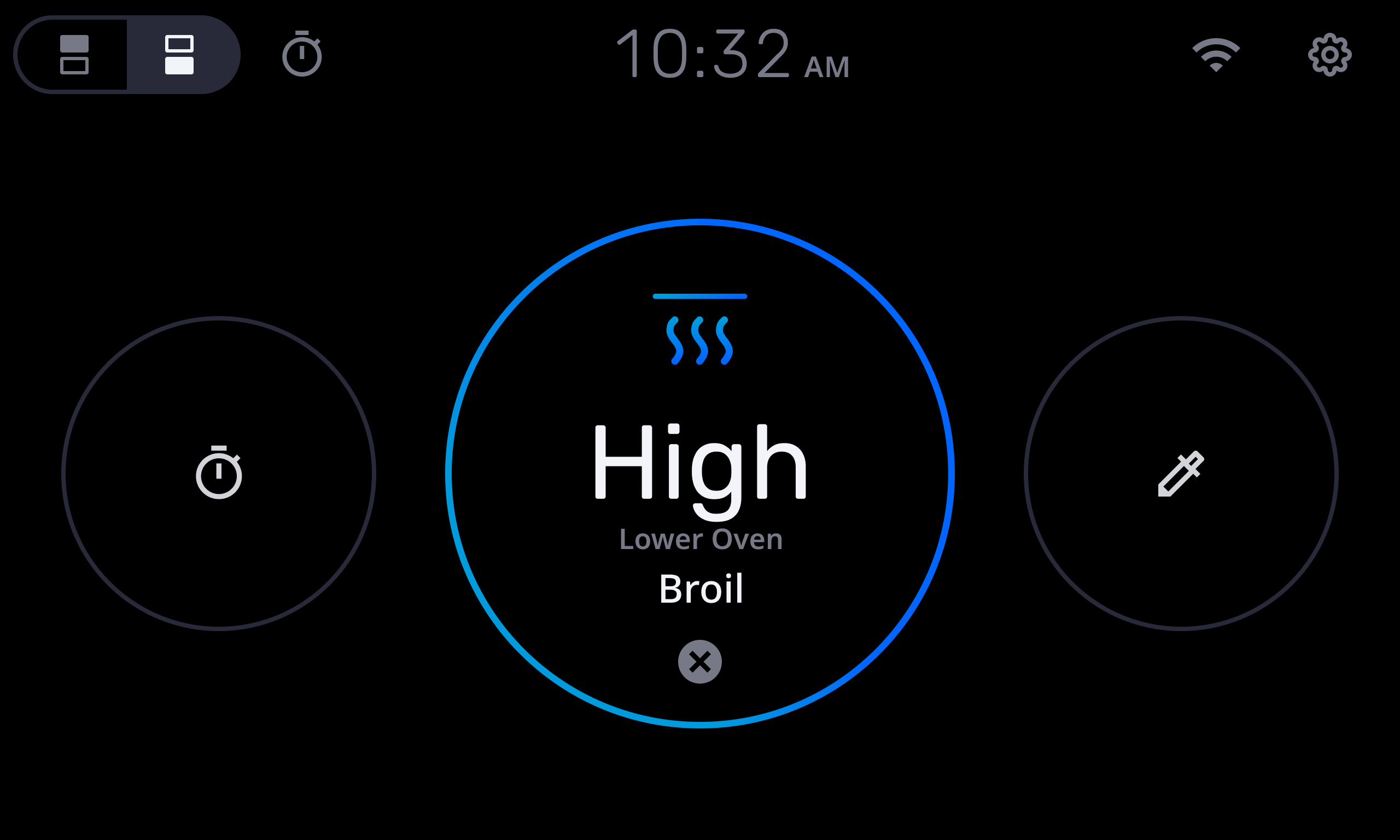

Once the oven cavity has reached the desired temperature, the display will transition to
this screen.
