| Sleep Mode | Active Mode |

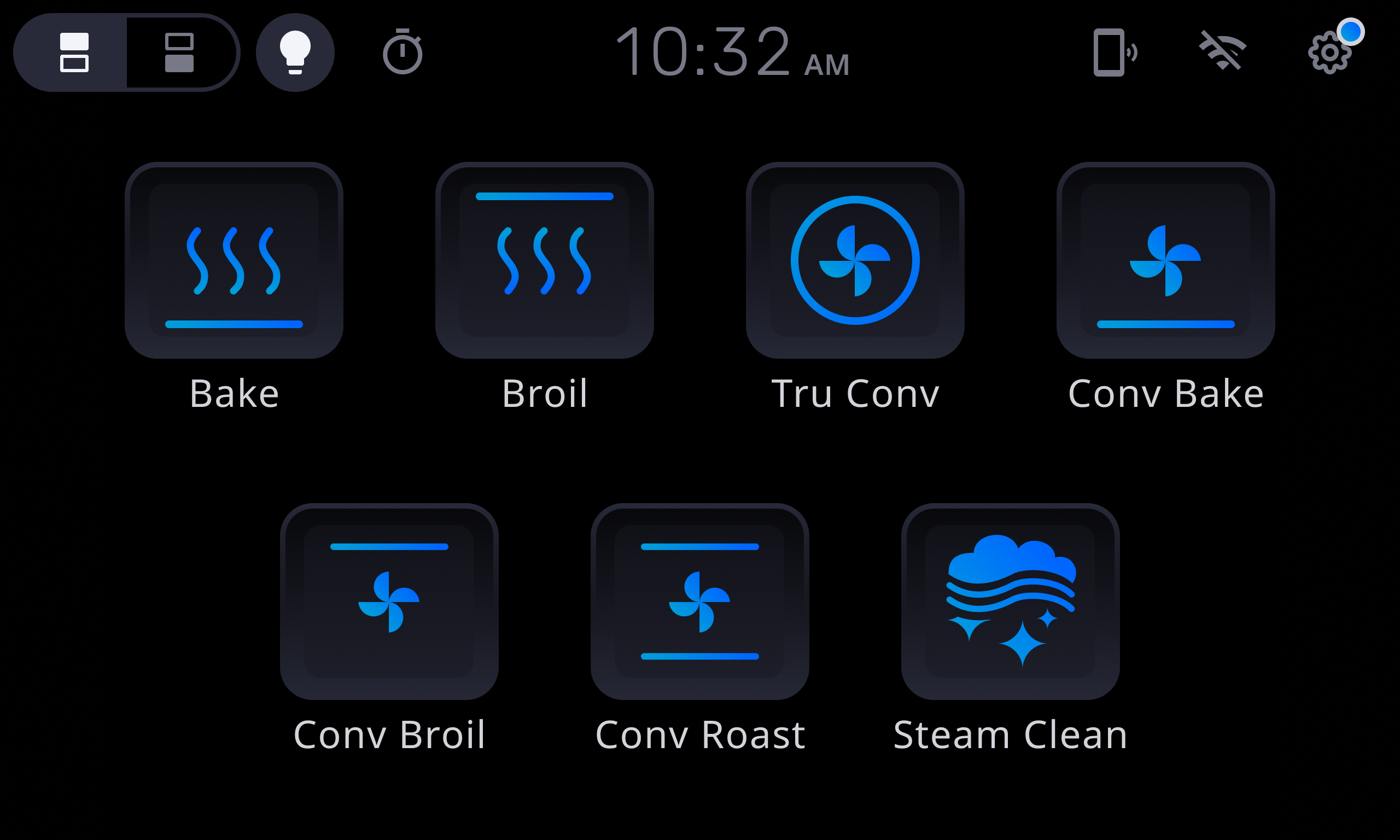

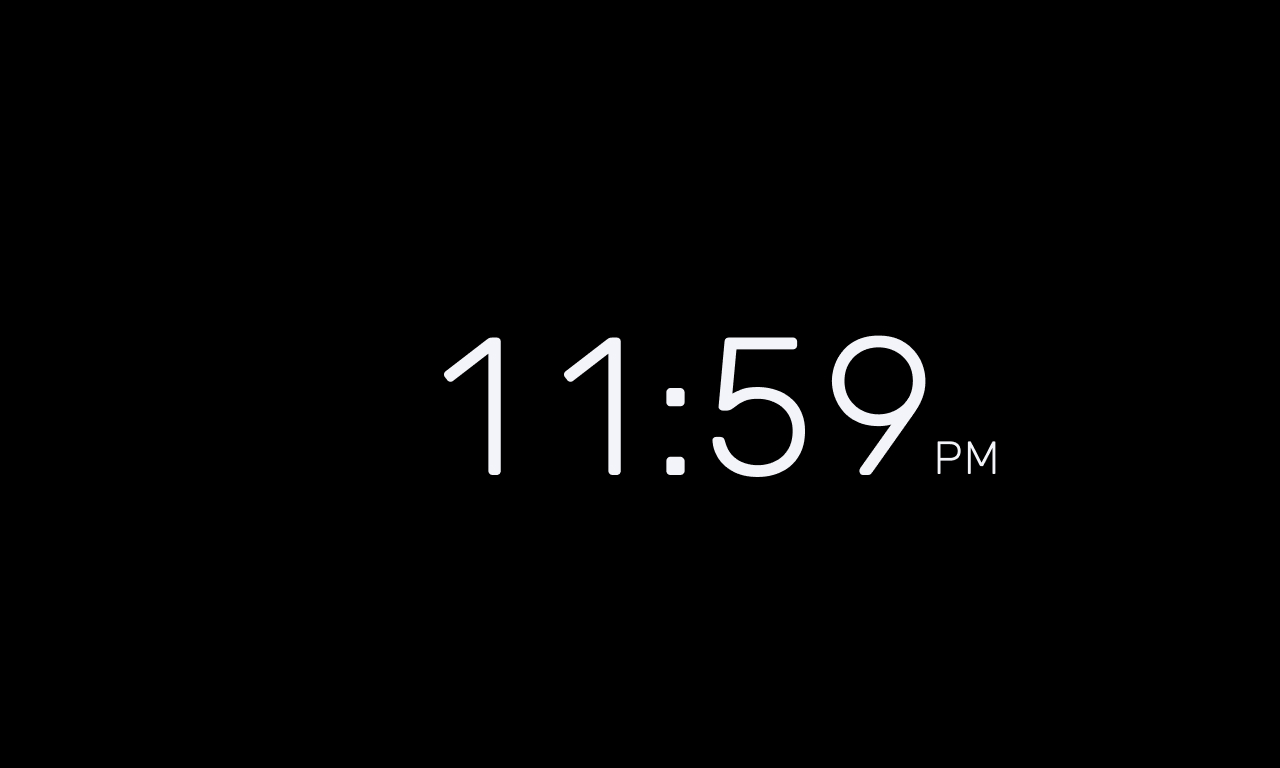

| When unit is powered on, and not interacted with for a few minutes, the display will show the current time. This is considered the sleeping mode. To activate, tap display, and the main menu with the cooking functions will appear. | |

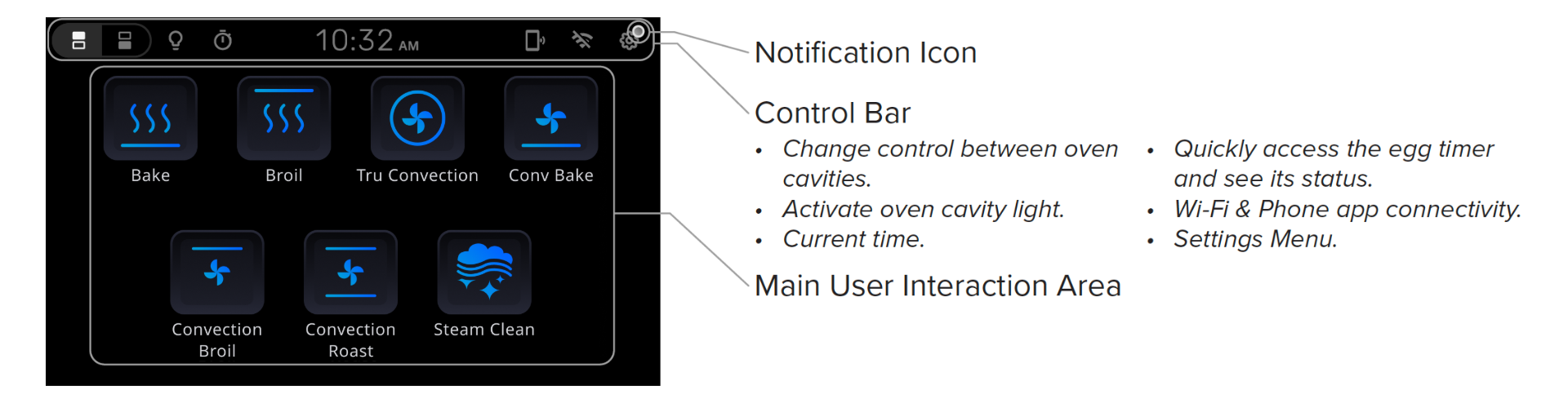

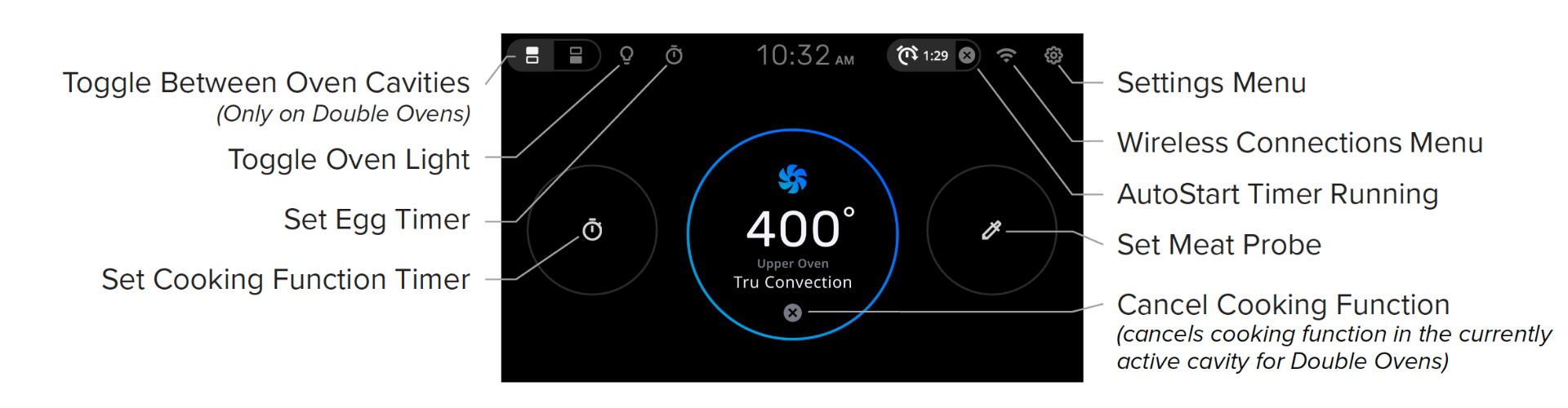

Control Bar Icons & Functions

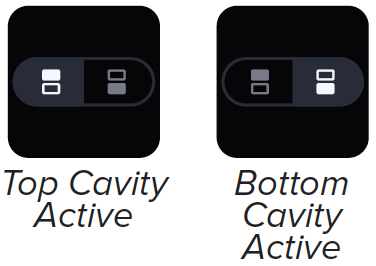

| Cavity Toggle (Double Oven) Tap this icon to toggle between the top or bottom oven cavity. The information on the screen will update and correspond to the currently selected oven cavity. |
Settings The Settings icon accesses the Settings menu and the Advanced Settings Menu. |
||

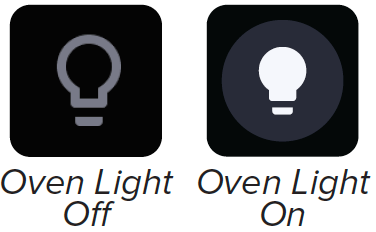

| Cavity Light Toggle The Cavity Light icon denotes whether the oven cavity light is on or off. (The active state of this icon is also determined by which oven cavity is currently active.) |
App Connection The Phone Connection icon denotes whether the oven is currently connected to the Viking App on a user's phone. |
||

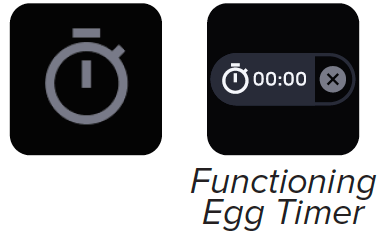

| Egg Timer Use the Egg Timer to quickly create a count down timer. |
Auto Start Timer The Auto Start Timer displays the amount of time before the selected oven cavity will proceed with a cooking function. |
||

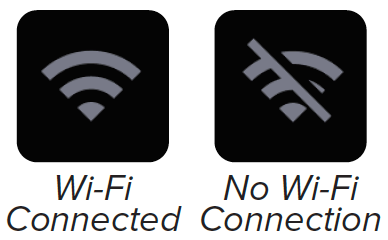

| Wi-Fi The Wi-Fi icon denotes the status of the WIFI connectivity for the oven. Either connected or not connected. |
|||
| NOTE: Oven Cavity Toggle affects what is displayed: The Oven Cavity Toggle switches the display between functions affecting one oven cavity or another. One such example of this is the Cavity Light Toggle. The information on the screen will update and correspond to the currently selected oven cavity. |
|||
